TotemBar

A lightweight shaman totem bar for TurtleWoW / WoW 1.12.1 (Vanilla).

Pick one totem per element, cast it with a click, cycle alternatives from a hover flyout, or drop all four with a single press. Every slot shows how long the totem still stands (outer ring, green → red) and when it pulses next (inner ring in the element's color) — with timings taken from actual server data, not guesswork. No dependencies; adopts the pfUI look automatically when present.

What's new — v0.2.0 · The Pulse UI release · 2026-07-10

• Round floating slots — the square boxes are gone; icons float in a subtle shadow-rim frame, with round hover/pressed states everywhere.
• Time traffic light — the outer ring drains with the totem's remaining lifetime and shifts green → yellow → orange → red.
• Pulse ring — a thin element-colored inner arc fills toward the next pulse and resets when it fires, animated per frame.
• Server-accurate pulse timing — intervals and first-tick behavior from TurtleWoW server data (Tremor pulses every 4s and immediately on placement; Magma and the water totems first pulse one interval in). Water totems re-anchor on the real observed mana/heal ticks.
• Pulse waves & glow — a ripple in the element color marks each pulse; a halo builds just before it.
• Bar layouts — 1×6, 2×3 (elements as a 2×2 block) or 3×2.
• Custom art set — element glyphs for empty slots, drop-set icon, minimap glyph, skinned options panel. All generated by scripts in tools/.

Version history — details in CHANGELOG.md:

• v0.2.5 (2026-07-25) — new option "Show drop-all button": hide the drop-all-totems button if you fire it from a keybind or macro and would rather not spend a slot on it. The keybind keeps working while it's hidden, and in the 1×6 layout the bar shrinks instead of leaving dead space.
• v0.2.4 (2026-07-14) — Totemic Recall no longer refuses to fire after a /reload: the "no totems out" guard relied on in-memory tracking that a reload wipes, and 1.12 offers no way to re-detect totems placed beforehand. Also a shared spellbook index, killing a multi-millisecond hitch when dropping four totems from one macro press.
• v0.2.3 (2026-07-13) — fixes a bug where dropping your set could make the new totems vanish an instant later: with nampower, Totemic Recall was queued behind the global cooldown and fired after the (off-GCD) totems were placed, sweeping them. Recall now bypasses the spell queue so it can't pull a fresh set.
• v0.2.2 (2026-07-10) — "Button spacing" slider in the options panel; keybind casts now feed TotemBar's own duration/pulse timers (previously only click-casts and pfUI did); removed the dead pulseGlow setting.
• v0.2.1 (2026-07-10) — tooltips now show your highest known rank (they read rank-1 values before; the cast itself was always highest-rank) and display the rank next to the name.
• v0.1.3 (2026-07-09) — Totemic Recall no longer wastes its 6s cooldown when no totems are out.
• v0.1.2 (2026-07-09) — mana cost on the drop-set tooltip, live refund estimate on the Recall tooltip, Totemic Mastery duration bonus, rank-aware mana scan.
• v0.1.1 (2026-07-09) — key bindings (Esc menu section for every action and every single totem), drop-set bar button, hover-bind mode with per-button key labels.
• v0.1.0 (2026-07-09) — first public release: element buttons, hover flyout, "Totems" macro with recall guard, minimap button, options panel, duration timers, out-of-range tint.

Screenshots

The bar & flyout	Options panel

Key bindings	Hover-bind mode

(Click any image for full size.)

Features

Casting

• One button per element (Fire / Earth / Water / Air): left-click casts the chosen totem, right-click clears the slot.

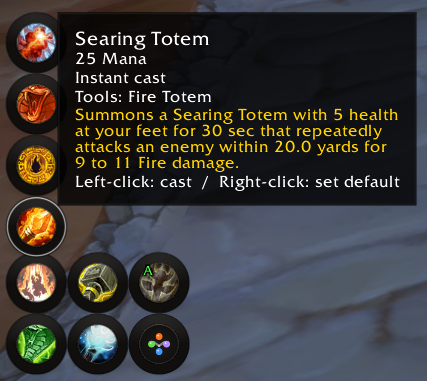

• Hover flyout with your other known totems per element — left-click casts once, right-click makes it the new default.
• Drop-set button and a one-press "Totems" macro cast all four chosen totems at once, guarded against accidental double presses (so a fast second press won't recall the set you just placed).

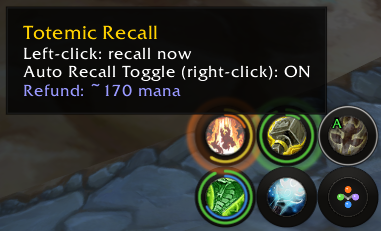

• Dedicated Totemic Recall button that only fires when totems are actually out — never wastes Recall's 6s cooldown. Right-click toggles auto-recall-before-redeploy.

At-a-glance timing

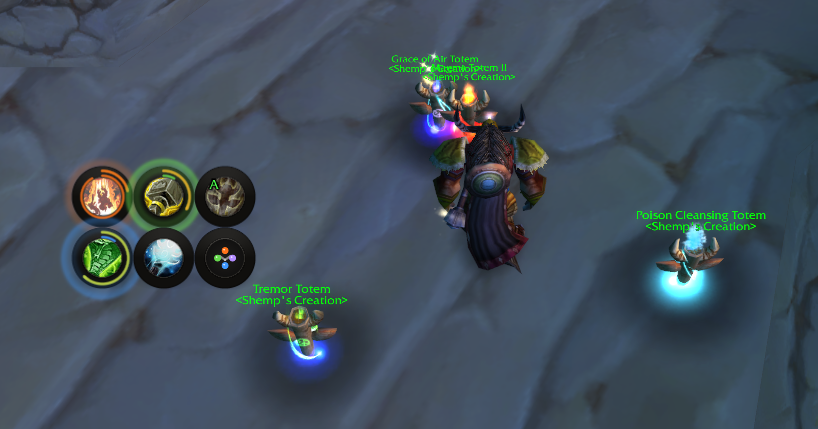

• Duration ring: the outer ring drains with the totem's lifetime, colored green → yellow → orange → red by remaining time.
• Pulse ring: the inner arc (element color) fills toward the next pulse — intervals and first-tick behavior derived from TurtleWoW server data, water totems locked onto their real observed ticks.
• Pulse waves: an expanding ripple marks each pulse, a soft halo announces it just before, and a spawn ripple confirms each placement.
• Optional countdown text under each slot; totems tint red when you leave their range (buff-presence based), and the Recall button pulses while anything is out of range.
• Native cooldown swipes and real in-game spell tooltips everywhere.

Control

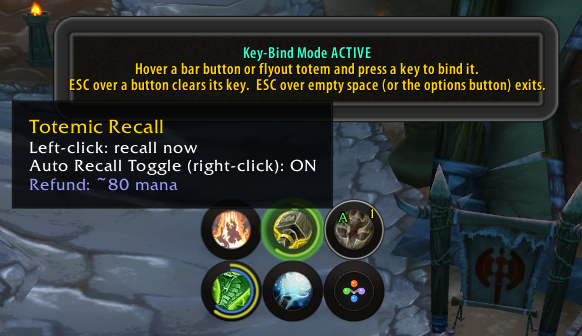

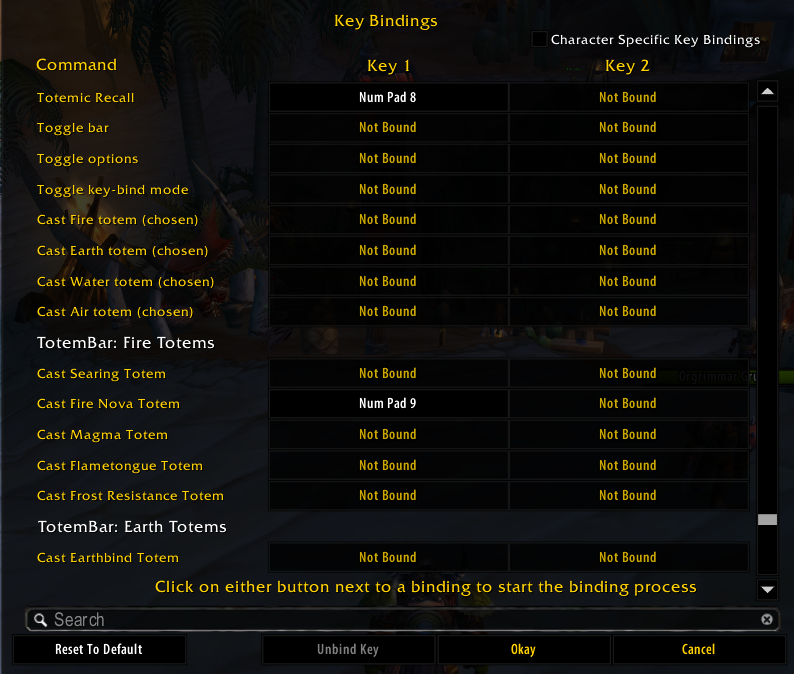

• Key bindings: an Esc → Key Bindings section for every action — including a binding for every single totem you know — plus a fast hover-bind mode (hover a button, press a key). Bound keys show on the buttons.
• Layouts: one row (1×6), two rows (2×3, elements grouped 2×2) or three rows (3×2), switchable live.
• Minimap button (drag to reposition, left-click options, right-click toggles the bar) and a skinned options panel for everything else.
• Assignment seam for future raid tools: an external addon can suggest a totem set via TotemBar.ReceiveAssignment — shown as a one-click apply panel, never auto-cast. See docs/API.md.

Install

Option A — download (simplest):

1. Grab TotemBar-vX.Y.Z.zip from Releases. (Use the Release zip, not "Code → Download ZIP" — that names the folder TotemBar-master, which WoW won't load.)
2. Extract the TotemBar folder into Interface\AddOns\.
3. Restart the client.

Option B — git (auto-updatable):

cd Interface/AddOns
git clone https://github.com/ShempError/TotemBar.git TotemBar

master is the stable release channel — git-based managers (GitAddonsManager, OctoWoW) stay current with a git pull. dev is work-in-progress.

Usage

Action	Effect
Left-click element button	Cast that element's chosen totem
Right-click element button	Clear that element's slot
Hover element button	Flyout with the element's other known totems
Left-click flyout totem	Cast it once (default unchanged)
Right-click flyout totem	Set it as the slot's new default
Left-click Recall	Cast Totemic Recall (only when totems are out)
Right-click Recall	Toggle auto-recall
Left-click drop-set button	Cast all four chosen totems
Minimap button	Left: options · Right: toggle bar · Drag: reposition

Slash commands: /tb (toggle bar) · /tb options · /tb lock · /tb bind (hover-bind mode) · /tb scan, /tb assign, /tb manadump, /tb pulsecal (dev aids).

The "Totems" macro: options panel → Create 'Totems' macro, then drag the Totems macro to your action bar. One press recalls (if auto-recall is on) and redeploys all four chosen totems.

Options

Open with the minimap button or /tb options.

Option	Does
Lock bar	Disable dragging
Auto-recall before setting	Recall first when the macro/drop-set fires
Show bar	Show/hide the whole bar
Show drop-all button	Show/hide the drop-all-totems button; its keybind keeps working either way
Show duration ring	Outer remaining-time ring (traffic-light colors)
Show pulse ring	Inner next-pulse arc (element color)
Show pulse waves	Ripple + glow effects on pulses
Show countdown text	Remaining-seconds text under each slot
Layout	Cycle 1×6 / 2×3 / 3×2
Recall guard (sec)	Double-press protection window
Cycle reset gap (sec)	When macro cycling restarts at totem 1
UI size	Scales bar + flyout from the top-left corner
Reset position / Create macro / Key bind mode	One-click actions

Requirements

• A WoW 1.12.1 client (TurtleWoW). No addon dependencies.

Optional, auto-detected: pfUI (skinned widgets; its libtotem feeds the timers as an extra source) and SuperWoW (only used by the /tb scan / /tb pulsecal dev aids for file exports).

For developers

• Public API for companion addons: docs/API.md.
• Pure-logic modules under core/ are unit-tested offline against a real Lua 5.0.3 interpreter (tools/luatests/, 14 suites). WoW-API files are syntax-checked; in-game behavior is verified on TurtleWoW.
• All textures are generated: tools/gen_*.js (zero-dependency Node) render the ring/FX/icon/panel sheets as 1.12-safe TGAs, and tools/preview_*.js composite them into PNG previews for review without launching the client.
• /reload covers changes to existing .lua files; a client restart is needed for .toc changes, new files, or changed textures (the client caches them).

License

MIT (see LICENSE).
